Installing and configuring the adapter in Salesforce

Installing the adapter in Salesforce (fresh installation)

Prerequisites

You have installed and configured Web Services.
You have set up SSL for Jetty. For more information, see Configure SSL.

Creating a Gplus Adapter URL

From the Agent Workspace URL, copy the domain name and substitute it in the following URL:

https://<domain-name>/ui/crm-workspace/index.html?crm=salesforce

Configuring Gplus Adapter for Salesforce - Workspace Web Edition(WWE)

Follow these steps:

Click the gear icon in the top right corner and then click Setup.
Using the Quick Find field, search for and access the Call Centers setup page.
From the Call Center settings page, using the Import functionality, import the crm-workspace-callcenter.xml file from your computer. If you have not already downloaded the file, download it from here.
From the All Call Centers list, click the Call Center you just imported. For example, Gplus85.
In the CTI Adapter URL field, specify the Adapter URL that you constructed in the Creating a Gplus Adapter URL section. For example, https://www.genesysgplustest.com/ui/crm-workspace/index.html?crm=salesforce
Set Salesforce Compatibility mode to Classic_and_Lightning.
Save the changes.

Adding users to Call Center

The next step after you setup your Adapter is to add users to your call center. You must add at least one user to your call center.

In the Call Centers setup page, click Manage Call Center Users.
Click Add More Users.
Search the interface to find the users you want to add to Gplus Adapter for Salesforce - Workspace Web Edition (WWE).
Select the users you want to add and click Add to Call Center.

Configuring the Utility bar

In the setup page, using the Quick Find field, search for and access the App Manager settings page.
Create a new application by clicking New Lightning App. Follow the steps in the Lightning App creation procedure in Salesforce documentation.
When creating a new Lightning app, follow the additional steps below to configure the utility items for your Gplus Adapter for Salesforce - Workspace Web Edition (WWE).
- In the App Options step, ensure that you select Console Navigation. Gplus Adapter for Salesforce - Workspace Web Edition(WWE) does not support Standard Navigation.
- In the Utility Items step, add Open CTI Softphone by clicking Add Utility Item.
- For the soft phone, you can modify the display properties such as Label, Panel Width, and Panel Height.
- Select Start automatically to start loading the data when the Gplus Adapter first opens to ensure that it initializes immediately; otherwise, Gplus Adapter does not load until an agent first opens it from the Utility Bar. If Gplus Adapter for Salesforce - Workspace Web Edition (WWE) is not initialized immediately, then agents do not receive voice calls until they first open the application.
Specify Navigation Items and User Profiles for the new Lightning app by referring to Salesforce documentation.
Save the application.

Configuring the whitelist domain for your Salesforce Console

Complete this procedure to add the Genesys domain to the whitelist domains for your Salesforce Console. You need to complete this procedure to allow your users to access the adapter in Salesforce Console in a separate browser window.

Start

If you haven't already, login to Salesforce and go to App Setup > Create > Apps and select your console app — "Sample Console" in the image below:
Click Edit. In Whitelist Domains, add the host and port for your installation of Web Services. For example: 198.51.100.23:8090
Click Save.

End

Configuring screen pops in Salesforce

When an agent receives an external call, the adapter can initiate a screen pop that causes Salesforce to show an appropriate record for the caller. To set up this functionality in Salesforce, login and go to Setup > Customize > Call Center > SoftPhone Layouts to create a SoftPhone Layout. Check out the Salesforce documentation for details about configuration.

In general, there are a couple of things to consider when you set up a SoftPhone Layout for the adapter:

The Gplus Adapter for Salesforce ignores the SoftPhone Layout settings that control call-related fields. Instead, the adapter gets this information from toast and case data you configure in the Genesys environment.
Make sure you configure the Screen Pop Settings in the "CTI 2.0 or Higher Settings" section. These settings control whether the screen pop opens in a new window, tab, or Visualforce page.

See Screen pop for more information about configuring screen pops in your Genesys environment.

Accessing Gplus Adapter for Salesforce - WWE Option

Classic Mode

You can access Gplus Adapter in Salesforce Console by clicking the phone icon in the bottom-right corner.

Lightning Mode

You can access Gplus Adapter in Salesforce Lightning by clicking the phone icon in the bottom-left corner.

Installing the adapter in Salesforce (existing installation)

Click the gear icon in the top right corner and then click Setup.
Using the Quick Find field, search for and access the Installed Packages page.
From the Installed Packages page, in the Installed Packages list, select the Genesys Gplus for Salesforce (Managed) package.
In the Package Details page that appears, click View Components.
In the Package Details page, from the Metadata Components Included in Package section, click the Genesys Gplus for Salesforce Call Center component.

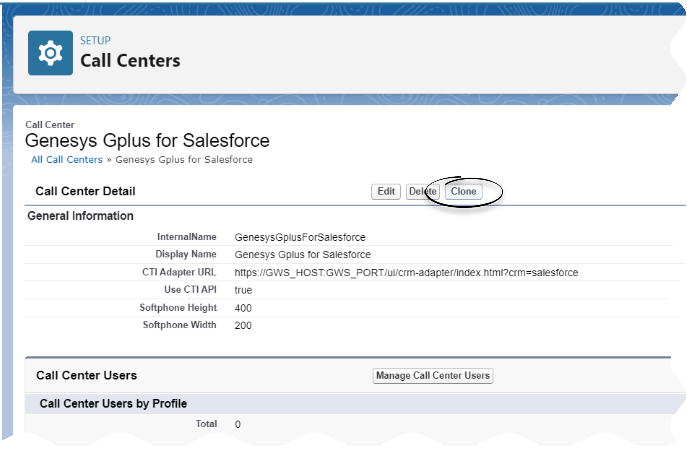

In the Call Center page that appears, click Clone. While cloning, make sure you provide an unique name in the Internal Name field and save the changes.
For the new Call Center that is just cloned in the above step, add the intended users.
Verify if the added agents are able to access the cloned Call Center.
Now, uninstall the original package Genesys Gplus for Salesforce (Managed) by following the Steps 1 - 4 and clicking Uninstall in step-4.
